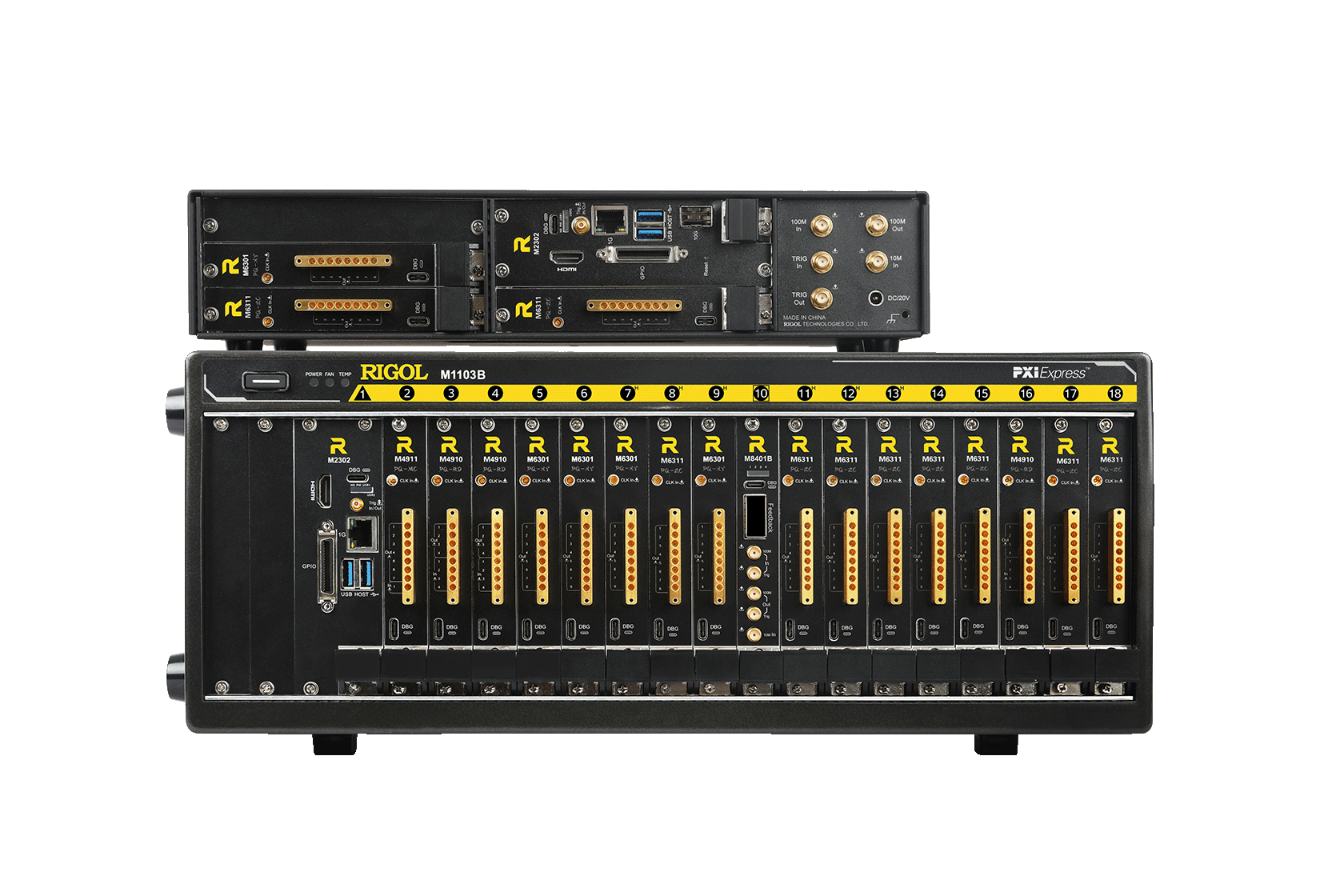

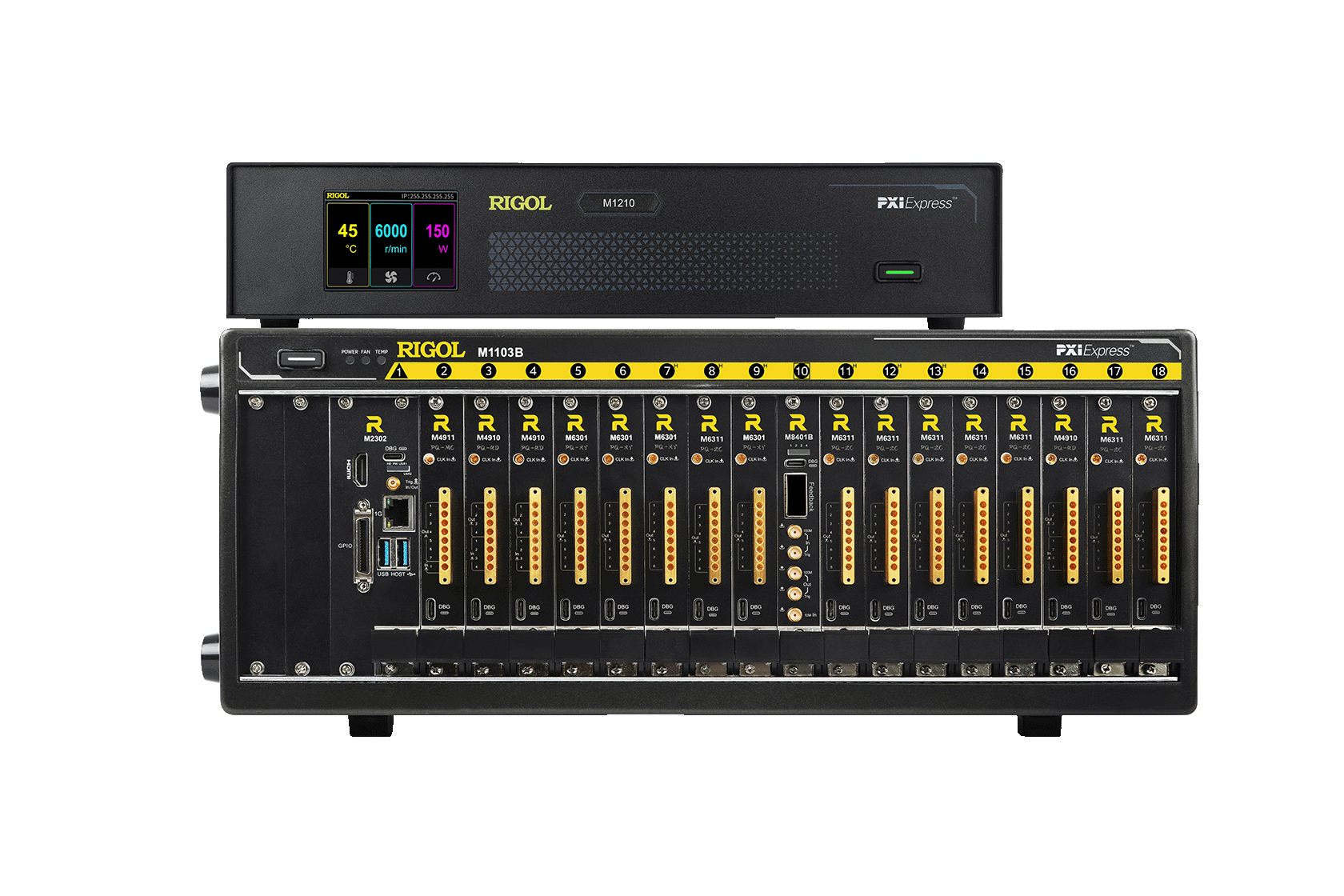

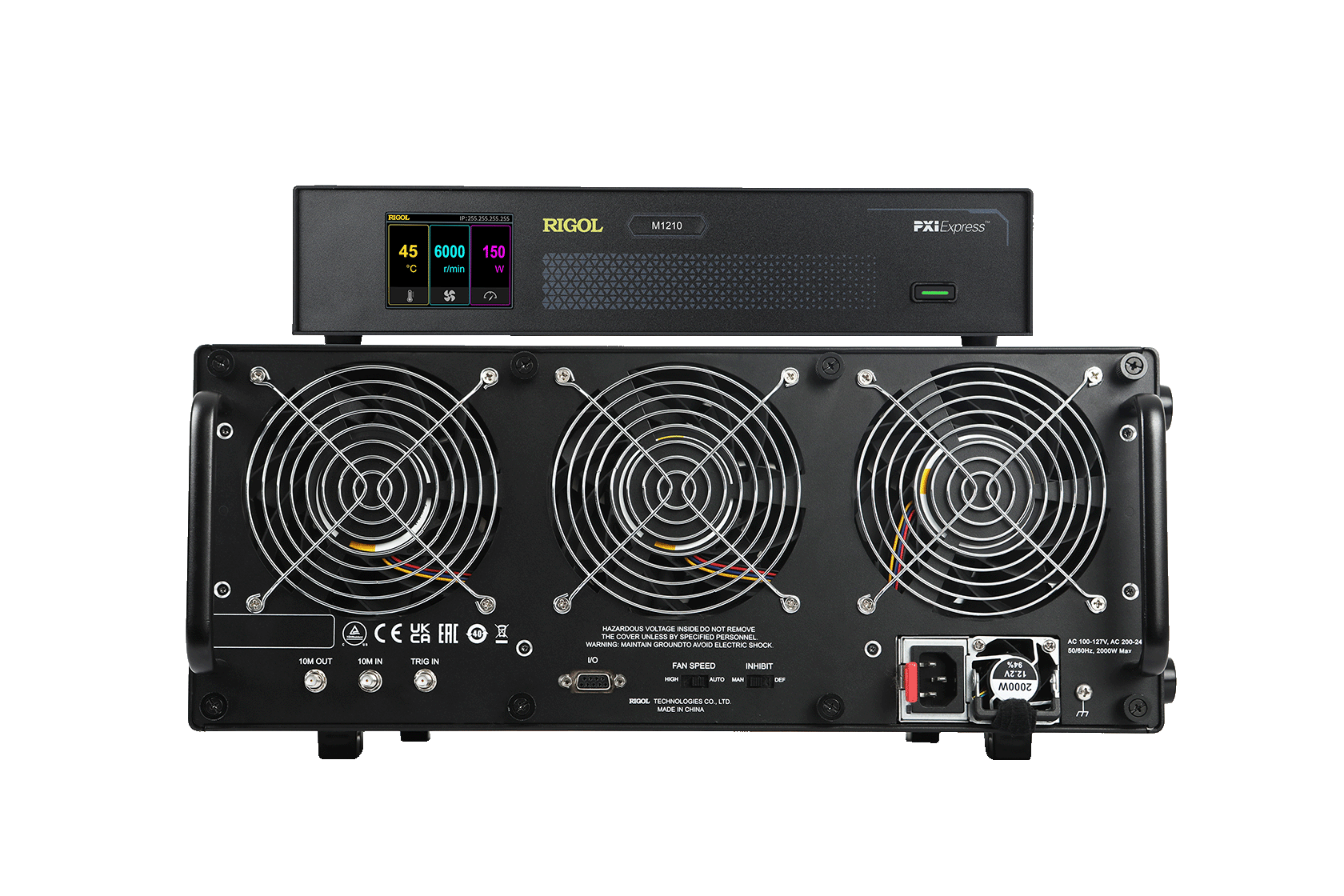

Digital Array Meas. and Control Solution

SPQ Series

RIGOL’s SPQ Digital Array Measurement-and-Control System (MCS) is engineered for the stringent test demands of advanced computing. Its modular architecture assigns key tasks to dedicated service modules: high-precision microwave control; data acquisition and analysis with real-time feedback; bias-voltage generation with microwave overlay; and clock/trigger distribution. Now driven by a flexible instruction set, SPQ eliminates many limitations of conventional measurement gear. Deployed at dozens of customer sites, it has proven long-term stability and continues to gain new capabilities, making it a benchmark solution in measurement-and-control applications.

PRICE
-

6/8/10 GSa/s

Microwave Control Sample Rate

3/4/5 GSa/s

Microwave Readout Sample Rate

14 bit

Resolution

0.1GHz-9.8GHz

Frequency Range

Higher Microwave Signal Quality

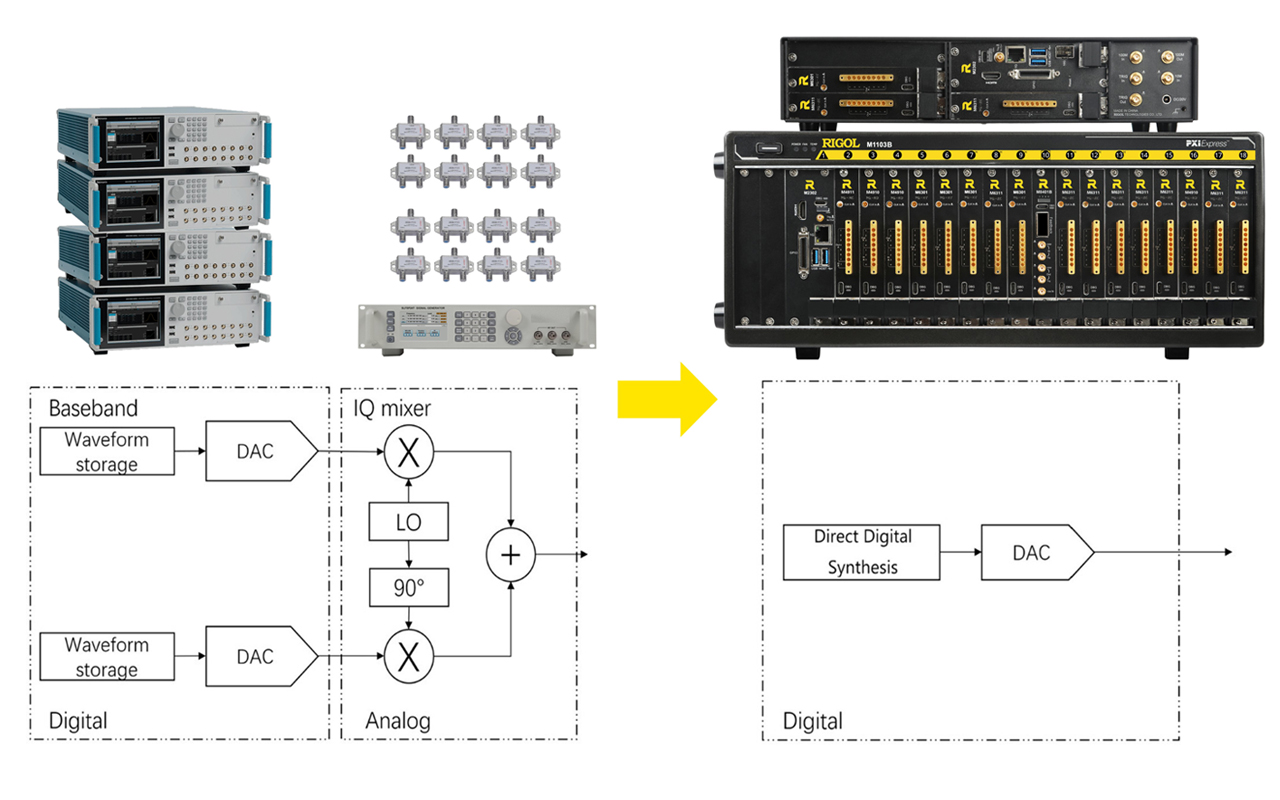

SPQ employs high-sample-rate direct digital playback in place of conventional baseband mixing, thereby eliminating LO leakage and I/Q imbalance at the source. With direct digital output, every microwave pulse maintains uniform amplitude and precise phase, leaving the waveform uncontaminated. Overall signal purity and long-term stability are greatly enhanced, giving noise-sensitive computing elements a precise and reliable drive foundation.

Simple & Clear Architecture for Lightning-fast MCS Deployment

With direct-digital output, each compute node needs just one signal port—no mixers, no multi-channel combiners. Cabling drops sharply and debugging is simplified, so you can build the system in a fraction of the time. The layout is clear and maintenance straightforward, giving experiments with hundreds of nodes efficient, reliable hardware support.

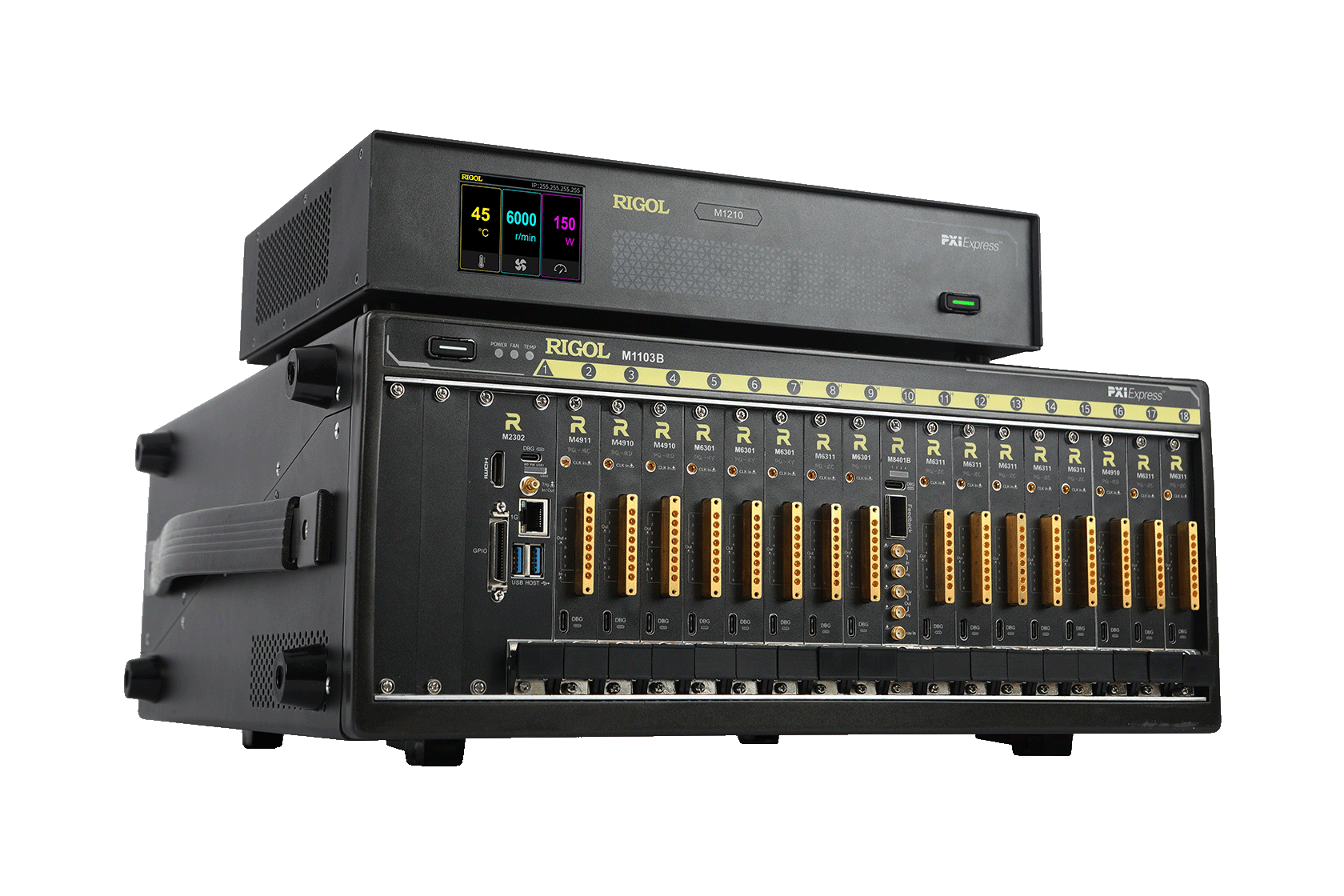

Highly Integrated, Covering All Requirements from Small to Large

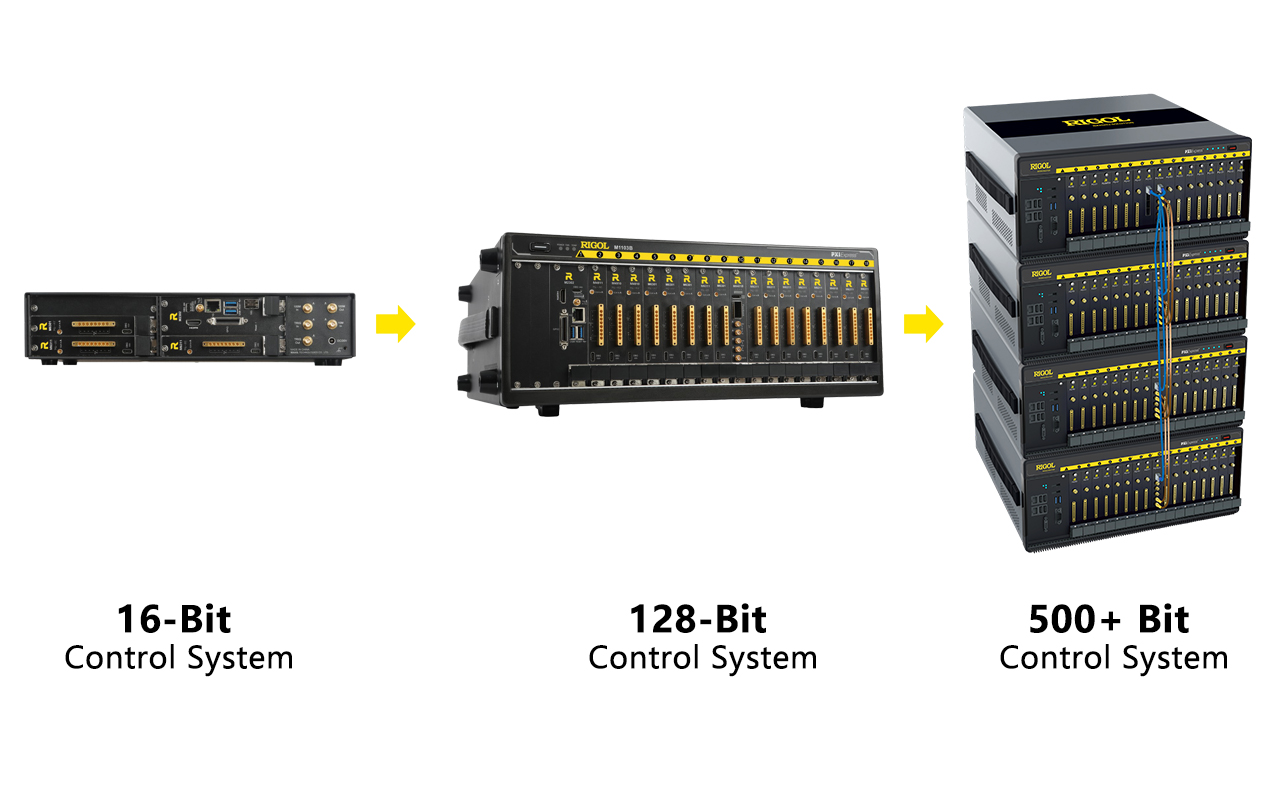

Housed in a 19-inch, 16 U chassis, a single SPQ unit packs more than 500 microwave control channels, each with ≥ 65 dBc isolation to suppress crosstalk. Integration is 10 × higher than traditional solutions. By combining full-stack M&C capability with simplified cabling, SPQ delivers both scale and stability, making it easy to grow an advanced-computing system from a handful of bits to a large-scale array.

Extremely low system noise and optimized bit performance

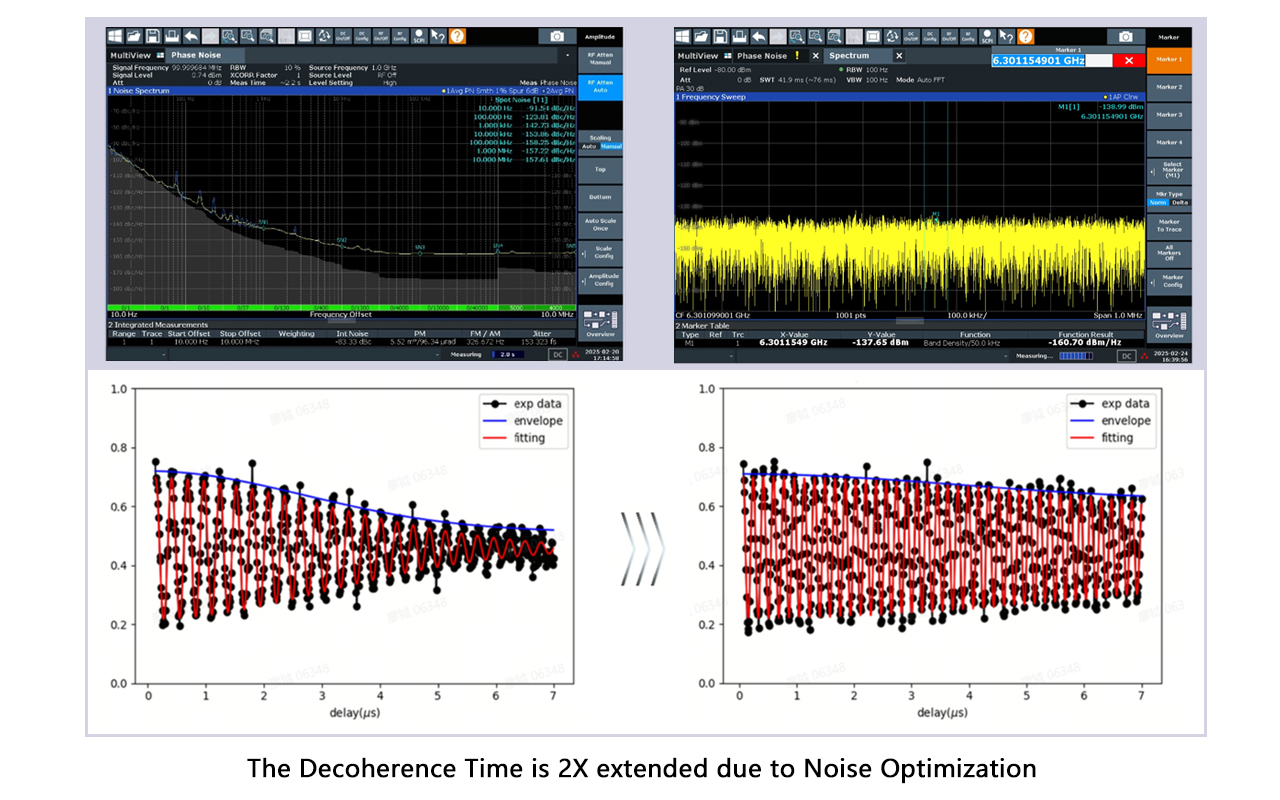

At a 100 MHz carrier with a 1 kHz offset, the SPQ delivers −142 dBc/Hz phase noise and a noise spectral density below −160 dBm/Hz, providing an ultra-clean environment for noise-sensitive computing elements. Decoherence Time is markedly longer, giving a computation window more than twice that of conventional solutions and ensuring long-term stability for deep experiments.

Convergence of Supercomputing and Advanced Computing

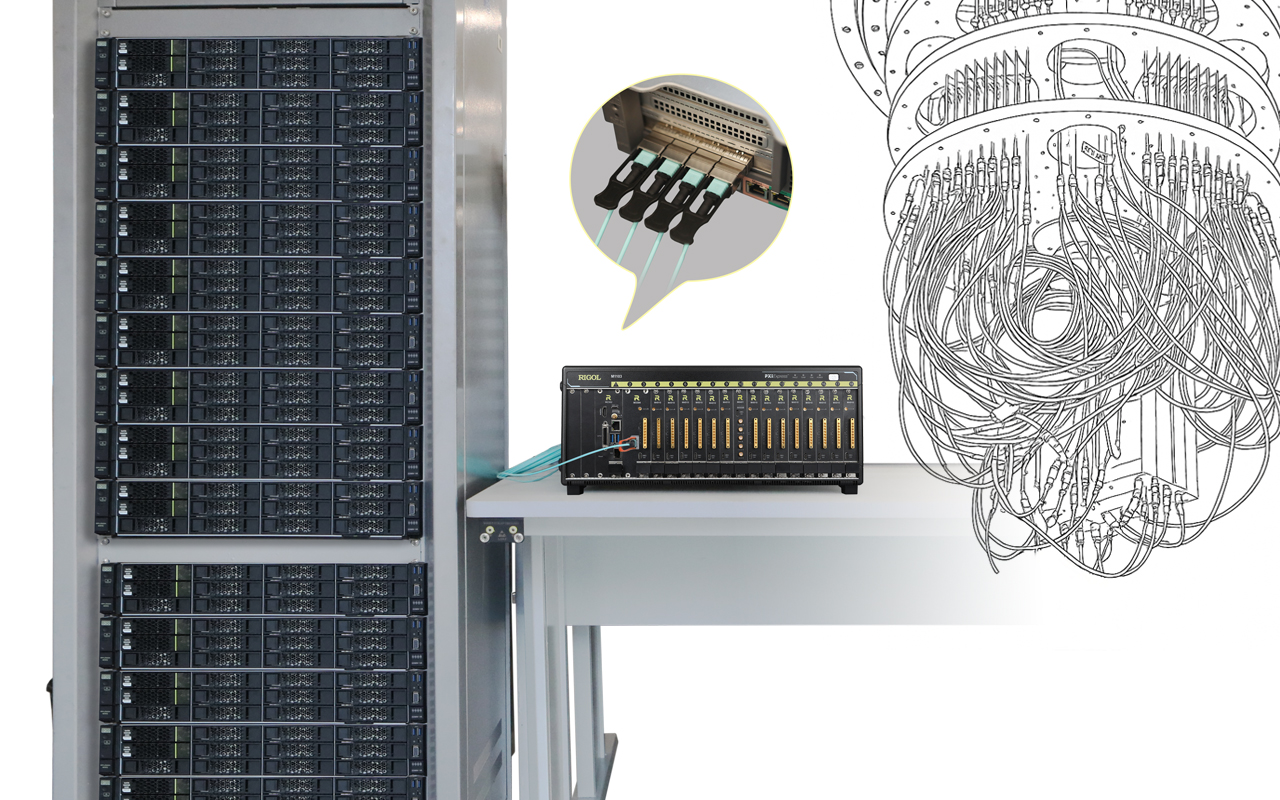

Leveraging PXIe-to-PCIe bridging, the SPQ links directly to supercomputers over multiple optical fibers using the PCIe protocol, enabling peer-to-peer data exchange. End-to-end latency drops to the microsecond level, while bandwidth exceeds 6 GB/s. This instant synergy between the exponential state space of advanced computing and the large-scale numerical power of HPC can shorten tasks such as materials R&D from years to just months.

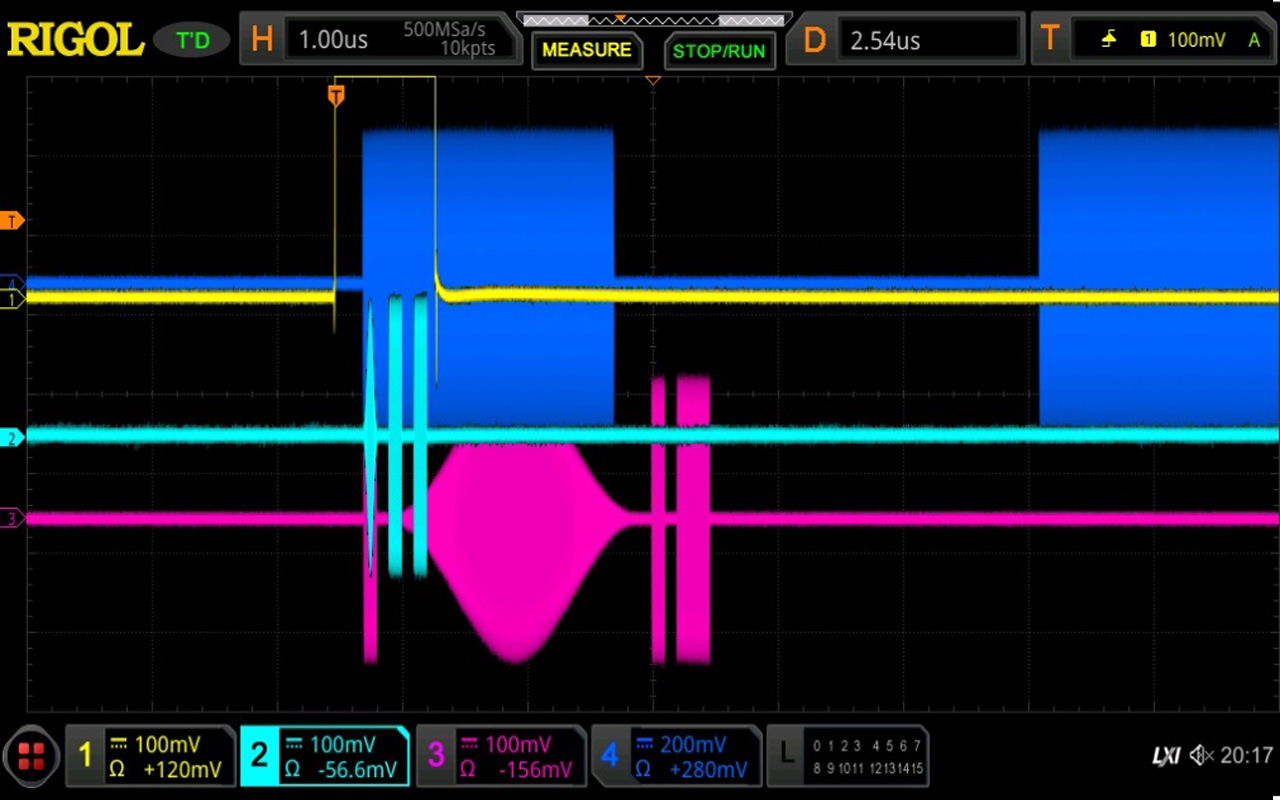

Dedicated Instruction Set and Active Reset Deliver Efficient M&C

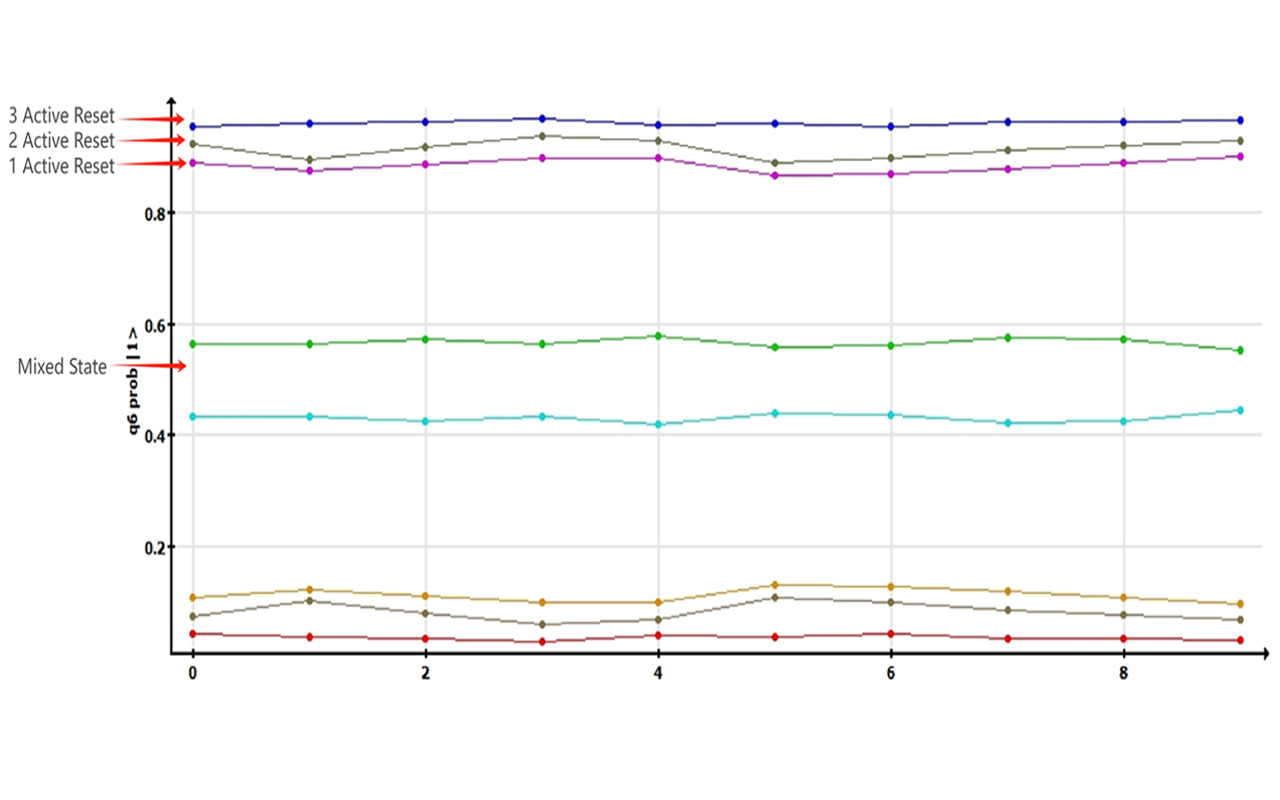

SPQ incorporates a dedicated M&C instruction set and offers a feedback path of under 300 ns, allowing active-reset waveforms to be issued immediately after every gate operation. Multiple resets raise the ground-state probability and, compared with passive decoherence waiting, lift overall experimental efficiency by more than tenfold—providing the real-time control bedrock for ALU and advanced encoding/decoding research.
